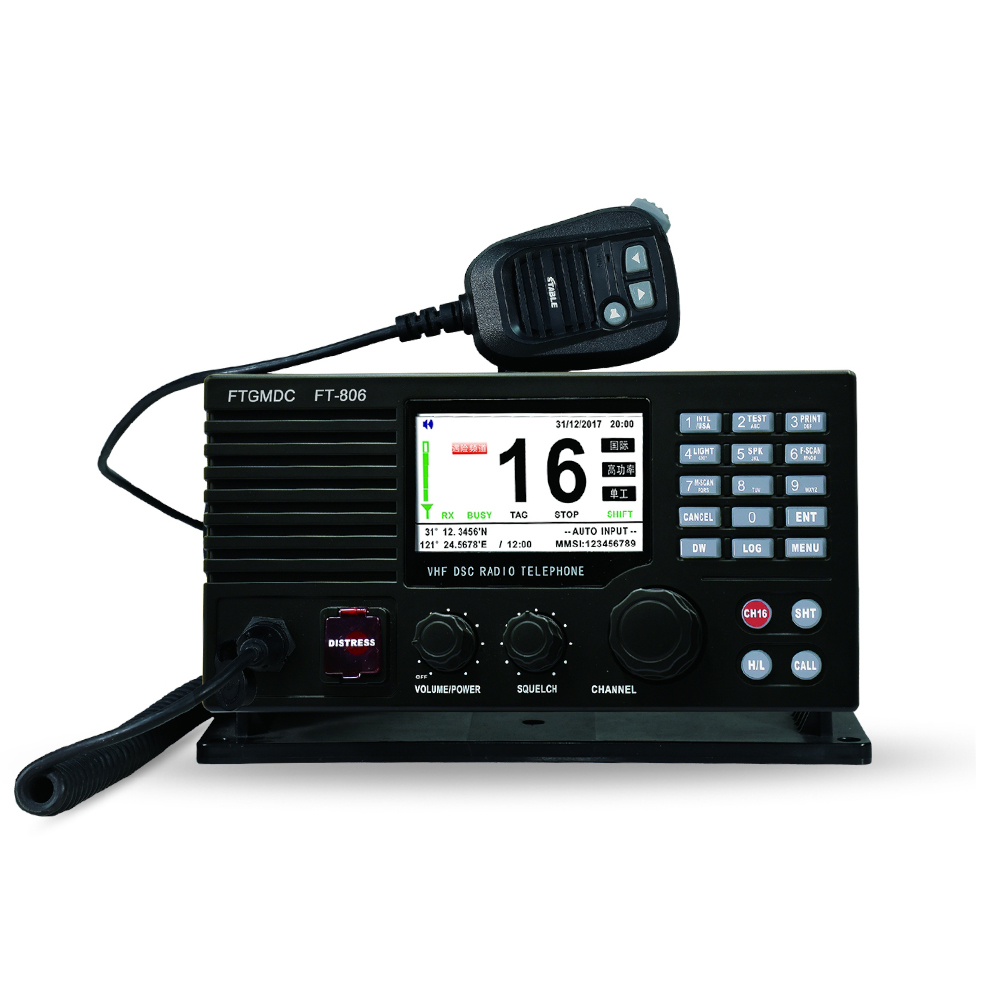

FT-806 VHF (INCLUDING A LEVEL A DSC) RADIO

  • IncludesU.S., Canada,international channelsand10 weather channels.Ithas dual-frequency and tri-frequency on-duty,and70channel (DSC )is continuouslyon-duty.Support selective call, group call,&n
  • INQUIRY


  •  Includes U.S., Canada, international channels and 10  weather channels.

  •   It has dual-frequency and tri-frequency on-duty, and 70  channel ( DSC ) is continuously on-duty.

  •   Support selective call, group call, sea call, all call and other digital selective calls.

  •   Distress call, confirmation, rebroadcast call.

  •   Ship position request, ship position report.

  •   FM ( 88-108MHz ) radio.

  •   Automatically record DSC transmitted and incoming messages.


Frequency Range

Tx: 156.025-157.425 MHz ,Rx: 156.025-163.275MHz

Conducted spurious emissions

transmitted to the antenna

150 kHz~1 GHz:≤0.25 μW(-36 dBm) 1 GHz ~2 GHz:≤1 μW(-30 dBm)

Modulation

FM(16K0G3E), DSC(26K0G2B)



Frequency error

≤±1.5 kHz

Transmitter residual modulation

≤-40 dB

Operating Voltage

DC13.8V(±15%)

Rated audio output power

≥2 W

Antenna impedance

50Ω

Maximum usable sensitivity

≤ +6 dB μV(e.m.f)

Output impedance

(Audio)8Ω

Adjacent channel selectivity

≥70 dB

Input resistance

(Microphone)2KΩ

Spurious response suppression

≥70 dB

Frequency error

≤±1.5 kHz

Intermodulation response

≥70 dB

Carrier power

25 W/1 W

Block

≥ +90 dBμV

Maximum allowable frequency deviation

≤±5 KHz

Conducted spurious emissions transmitted to the antenna

9 kHz~2 GHz:≤2 nW(-57 dBm)

Harmonic distortion

≤10%

Receiver noise level

≤-40 dB
