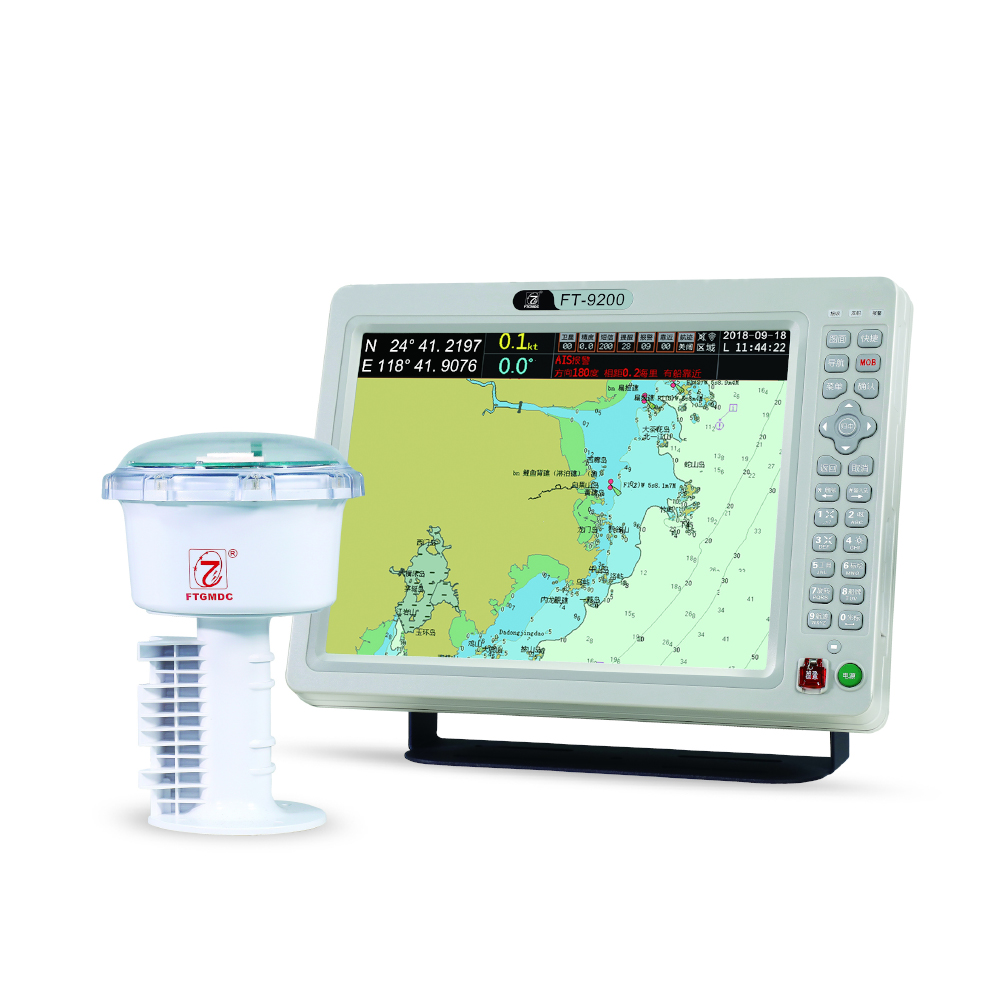

FT-9200 FISHING BOAT BEIDOU MULTIFUNCTIONAL SHIPBORNE EQUIPMENT

Color large-screen electronic chartnavigation,supporting various navigation andnavigation functions.Beidou/GPSdual-modepositioning,supportshipposition report,real-timeshipdynamicretrieval.Beidou&nb
INQUIRY

Color large-screen electronic chart navigation, supporting various navigation and navigation functions.
Beidou/GPS dual-mode positioning, support ship position report, real-time ship dynamic retrieval.
Beidou RDSS/mobile public network dual network joint complementary work.
Manual one-key alarm activation and automatic release of the alarm when falling into the water, with a frequency of 1 minute/time.
The outdoor unit is protected against disassembly and movement, supports three power supply modes of solar energy
+ built-in battery + ship power, autonomous and uninterrupted work.
Built-in large-capacity storage unit to automatically record the ship's voyage data.

Public network frequency	Beidou RDSS+Mobile Public network	Waterproof level	IP67（External unit）， IP54（Internal unit）
GNSS frequency	1575.42MHz(GPS) ， 1561.098MHz(Beidou)	Transmit power	≥40dBm
RDSS frequency	2491.75MHz（Rx） 1615.68MHz（Tx）	Transmit EIRP value	≤19dBw
Positioning accuracy	≤10m(Horizontal) ，≤15m(Vertical)	Receiving sensitivity	≤-127.6dBm
First fix time	Cold start ≤33 seconds, hot start ≤ 2 seconds, recapture ≤ 2 seconds	Receive error rate	≤1×10-5
Operating Voltage	DC9-38V	Two way zero rates	（1000000±10）ns
Length of work	3 year	First capture time on boot	≤2s
Battery Life	>5 years (extreme no charge>3 months)	Loss of lock recapture time	≤1s
Display screen	12＂(TFT 600×800)
