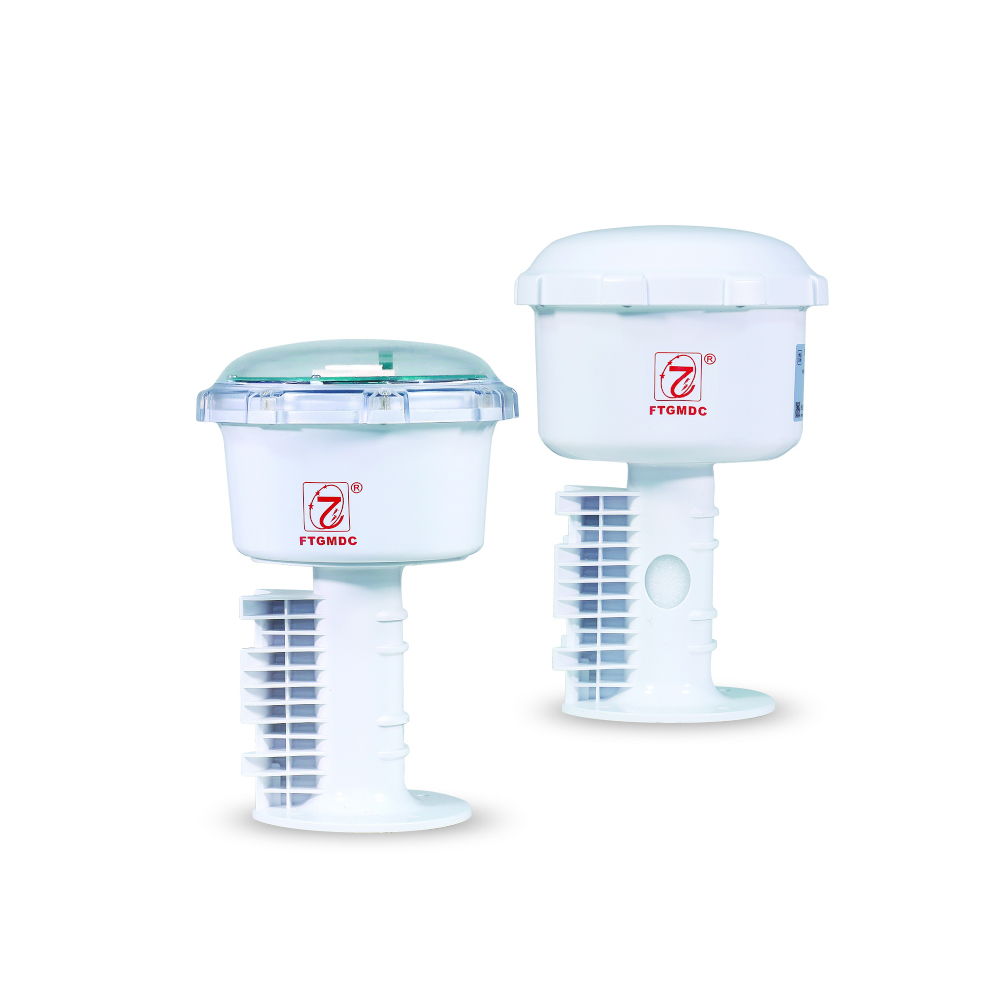

FT-9200-D FISHING BOAT BEIDOU POSITIONING EQUIPMENT

Support solar + rechargeablebatterypowersupplyand large-capacity disposable battery power supply tomeetthe needs of differentusers.Supportone-keycallforhelpandautomaticreleaseof alarm when wat
INQUIRY

Support solar + rechargeable battery power supply and large-capacity disposable battery power supply to meet the needs of different users.
Support one-key call for help and automatic release of alarm when water enters 2.5-4 meter.
Beidou private network and GSM public network dual system work.
Using Beidou and GPS satellite dual system positioning to improve positioning accuracy.
Terminal anti-closing, anti-disassembly, with forced disassembly alarm.
The device can automatically and continuously report the ship's position according to the set time (default 1 Min / time).
Automatically record voyage data and support data upload.
Real-time monitoring of battery power, working status and communication status, and upload regularly.

Battery capacity	152000mAh		8800mAh/152000mAh
Length of work	>6years		>6 years (more than 4 months without charging)
Public network frequency	Beidou RDSS+Mobile Public network	Transmit power		≥40dBm
RDSS frequency	2491.75MHz（Rx） 1615.68MHz（Tx）	Transmit EIRP value		≤19dBw
GNSS frequency	1575.42MHz(GPS),1561.098MHz(Beidou)	Receiving sensitivity		≤-127.6dBm
Positioning accuracy	≤10m	Receive error rate		≤1×10-5
First fix time	Cold start ≤ 33 seconds, hot start ≤ 2 seconds, recapture ≤ 2 seconds	Two way zero rate		（1000000±10）ns
Operating temperature	-25℃~+55℃	First capture time on boot		≤2s
Waterproof level	IP68	Loss of lock recapture time		≤1s
