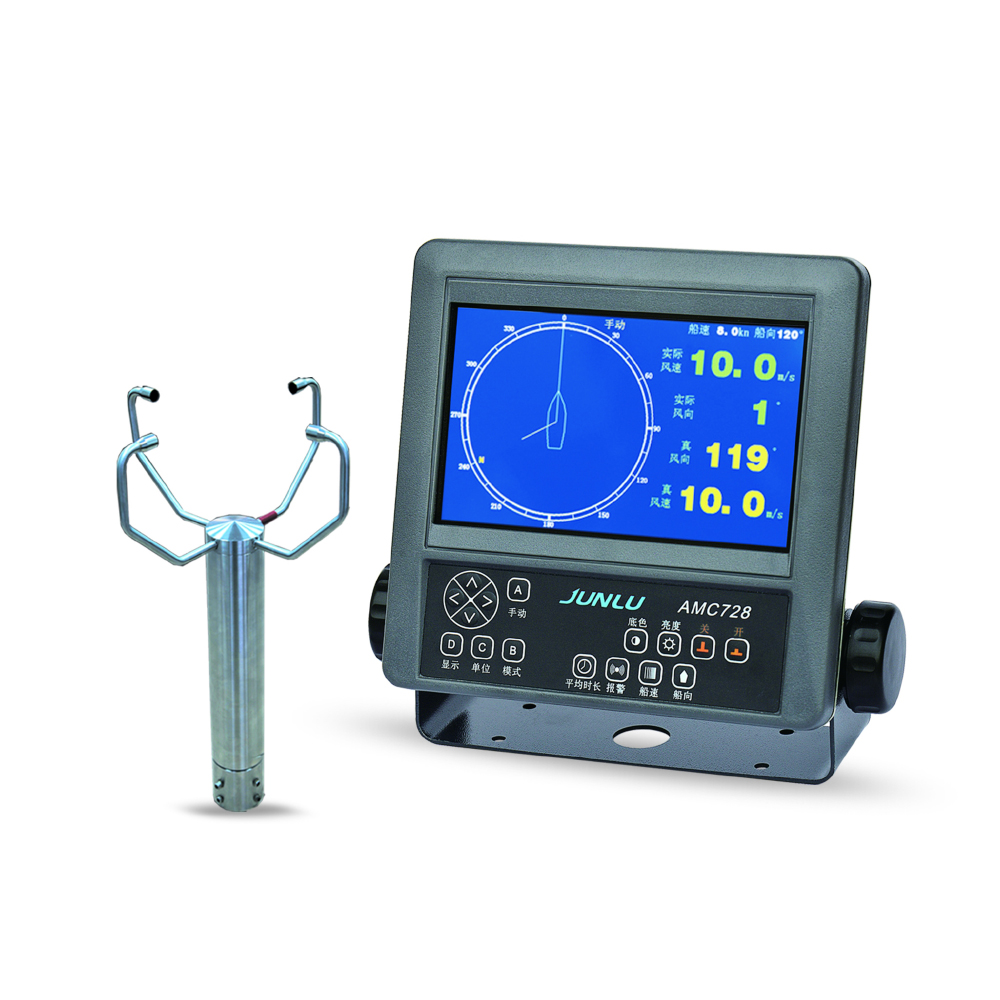

AMC728 ANEMOMETER

Highprecision,highreliability,noblind spotsin 360 degrees,not affected bybad weather.No starting wind speed of traditionalequipment,no mechanical maintenance.High-performance 7 -inchcolorLCDd
INQUIRY

High precision, high reliability, no blind spots in 360 degrees, not affected by bad weather.
No starting wind speed of traditional equipment, no mechanical maintenance.
High-performance 7 -inch color LCD display, always grasp the wind speed and direction.
Dual NMEA0183 data input / output.

Main unit	230×21×83mm , weight 1kg	Wind speed measurement accuracy	0.1m/s (when the wind speed is less than 5m/s ) ±2% (when the wind speed is greater than 5m/s )
Sensor unit	274×274×413mm , weight 5kg
Weather sensor (including blinds)	Φ220×190mm , weight 2kg	Wind direction measurement range	0-359°
Power supply	DC24V(-25%/+30%)/2A	Wind direction measurement accuracy	±1°
Power consumption	No more than 12W at 25°C no more than 45W when heating	NMEA data input (two channels)	Optional receiving: GPS, compass, log data
		NMEA data output (two channels)	Wind speed and direction, weather (if any) data output
Operating temperature	Outdoor -20-60°C , indoor -10-50°C	Temperature measurement range	-40 ~+85°C
Storage temperature	-30-70°C	Temperature measurement accuracy	0.5°C
Humidity	10-90% relative humidity	Humidity measurement range	0 ~100%RH
Show	7 -inch color LCD display	Humidity measurement accuracy	0.5%RH
Brightness	LCD screen background, brightness adjustable	Barometric pressure measurement range	500 ~1100hPa
Wind speed measurement range	0-40m/s	Air pressure measurement accuracy	15hPa
