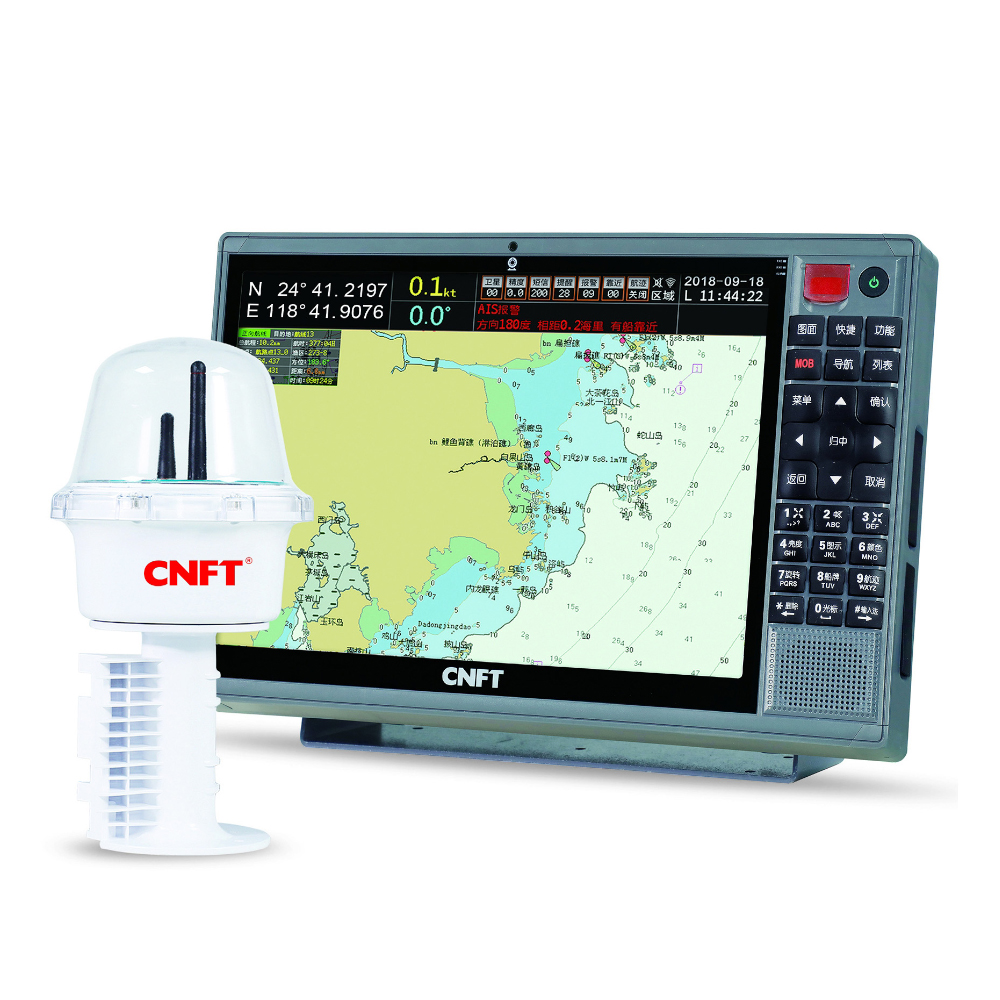

FT-9700（Plug-in Integrated）CLASS-B AUTOMATIC IDENTIFICATION SYSTEM FOR PLUG-IN FISHING BOATS

AIS/mobilepublicnetworkmulti-system joint work to achieve full sea areacoverage.Staticinformationis only obtained through the ship's AIScard and cannot be tampered with.It meets therequirementsof the" Technical Specific
INQUIRY

AIS/ mobile public network multi-system joint work to achieve full sea area coverage.
Static information is only obtained through the ship's AIS card and cannot be tampered with. It meets the requirements of the
Technical Specification for Fishery Vessel Automatic Identification System (AIS) Class B Equipment.
Ship intelligent anti-collision alarm.
It is equipped with anti-dismantling protection, falling water release device, and ship tilt sensor.
Support three power supply modes: solar energy + built-in battery + ship power, independent and uninterrupted work.
Built-in large-capacity storage unit to automatically record the ship's voyage data.
Automatic monitoring report of host battery, navigation status, communication status, etc.

Frequency Range	161.500～162.025MHz	Operating temperature	-20℃~+55℃
Default operating frequency	AIS1： 161.975MHz、AIS2： 162.025MHz	Waterproof level	IP67（External host）， IP65（In-cabin display control）
Channel spacing	25KHz	Frequency error	±500Hz
Operating mode	CSTDMA	Carrier power	33dBm±1.5dB
Positioning mode	Beidou+GPS	Receiving sensitivity	-107dBm ，PER＜20%
Positioning error	≤10m	Error at high input level	-77dBm ，PER＜2%；-7dBm ，PER＜10%
First location time	≤50s	Spurious emission	9KHz~1GHz：＜-36dB； 1GHz~4GHz：＜-30dBm
