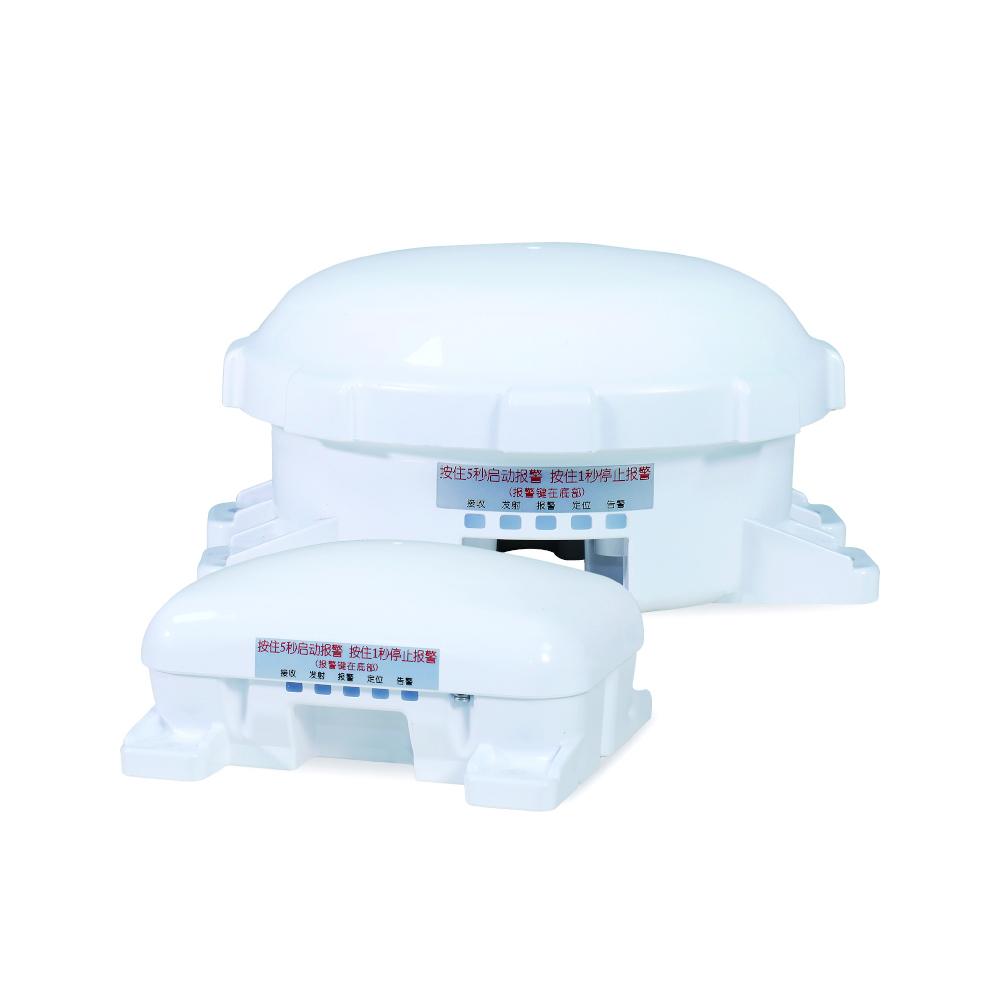

FT-9200-R/FT-9200-G FT-9300-R/FT-9300-G FISHING BOAT FIXED BEIDOU POSITIONING EQUIPMENT

Usingmobilepublicnetworkfordatatransmission, supportingBeidoushortmessagecommunication.Supportone-keydistressalarm,dismantleandmove alarmandtiltalarm.
INQUIRY

Using mobile public network for data transmission, supporting Beidou short message communication.
Support one-key distress alarm, dismantle and move alarm and tilt alarm.
Beidou/GPS dual system positioning to improve positioning accuracy.
Automatic report of ship dynamics, battery power and working status.
Built-in memory chip, automatically record own ship's voyage data.
Built-in wireless connection module, which can realize navigation, information display, Beidou SMS sending and
receiving functions by connecting to the mobile phone APP

Communication frequency	Beidou RDSS+Mobile Public network		Mobile Public network
Transmit EIRP value	≤19dBW
Battery capacity	76000mAh	Waterproof level		IP68
Battery Life	>6 years	Working frequency		L1:1575.42MHz ，B1:1561.098MHz
Length of work	>3 years	Positioning accuracy		≤10m
Storage capacity	Continuously store own ship's trajectory data for more than 5 years	Receiving sensitivity		-133dBm (Tracking) ，-130dBm (Capture）
Operating temperature	-25℃~+55℃	First fix time		Cold start≤12min, hot start≤1min, recapture≤1min
