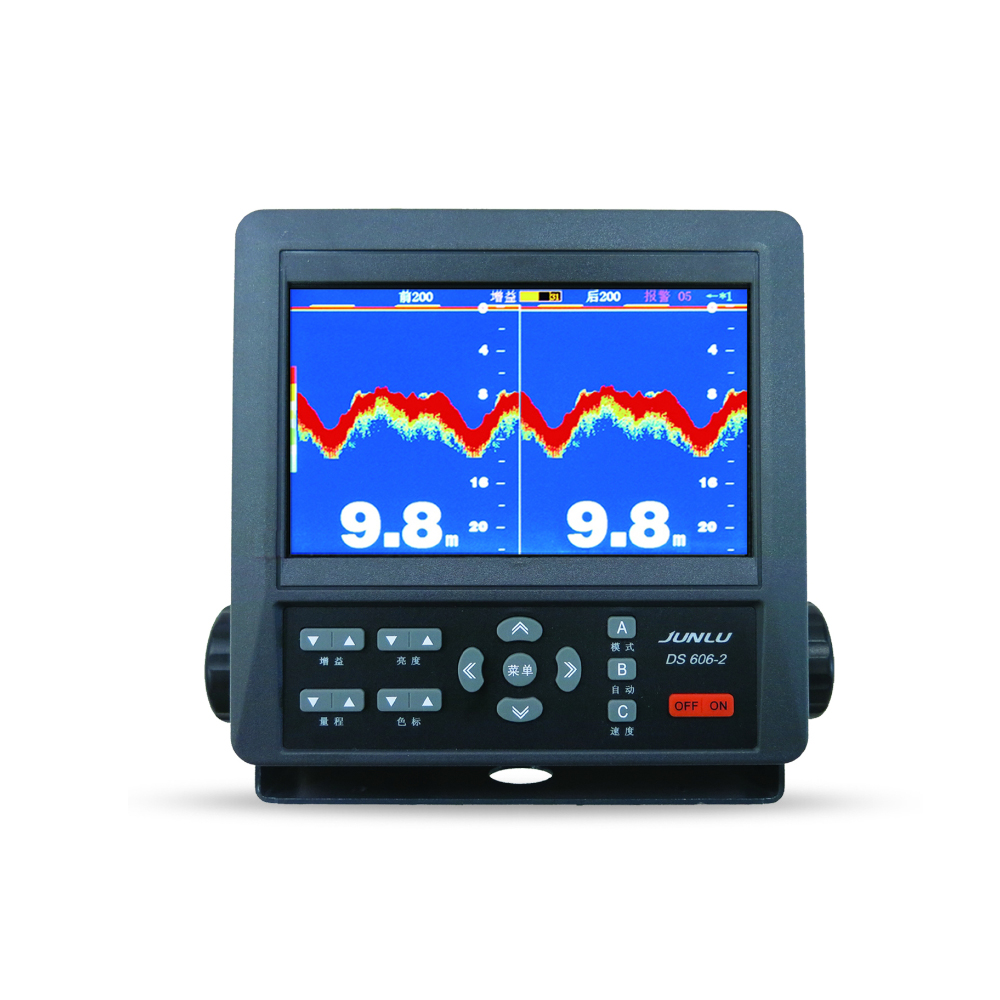

DS606-2 INNER RIVER ECHO SOUNDER

Lowcost,paperless,nopollution.Highprecision andhighreliability — different from those usingmotor belts and styluspaper depth sounder.High-contrast 7-inchLEDLCDdisplay.Withhi
INQUIRY

Low cost, paperless, no pollution.
High precision and high reliability — different from those using motor belts and stylus paper depth sounder.
High-contrast 7 -inch LED LCD display.
With high viewing angle and brightness adjustment function.
Automatic range function: automatically select the range according to the measured water depth.
Auto gain: automatically set gain according to water conditions.
Alarm function, shallow water alarm, confirm the safe driving of the ship.
Optional dual-channel sounding, easy for customers to operate.

Host size	23021583mm	Receiver sensitivity	Better than -50dB
Transducer	200kHz,Φ71.5	Depth range	0.3 ~300m
Power supply	DC24V	Range scale	2.5m; 5m; 10m; 20m; 100m; 200m; 300m
Operating temperature	0～50℃	Show	Depth of display record ≥15min
LCD working temperature	-20℃~70℃	Data storage	=12h depth data; support playback of recorded data, display optional numbers or graphics
Humidity	10 ~90% relative humidity	Pulse repetition rate	Deep water: ≥12 times /min; shallow water: ≥36 times /min
Screen size	7 inches	Measurement accuracy	The scale is ±0.2m in the 20m range, correspondingly ±2m in the 200m range
Transmit signal frequency	200kHz	Resolution	Shallow water (20m) ≥5.0mm; deep water (200m) ≥0.5mm
Transmit pulse width	2.5us±1us	Interface	Standard IEC 61162 data output
Transmit power	300W.RMSW	Compass safe distance	Standard compass ≥0.75m; steering compass ≥0.45m
Receive bandwidth	9-18dB	Case rating	IP22
