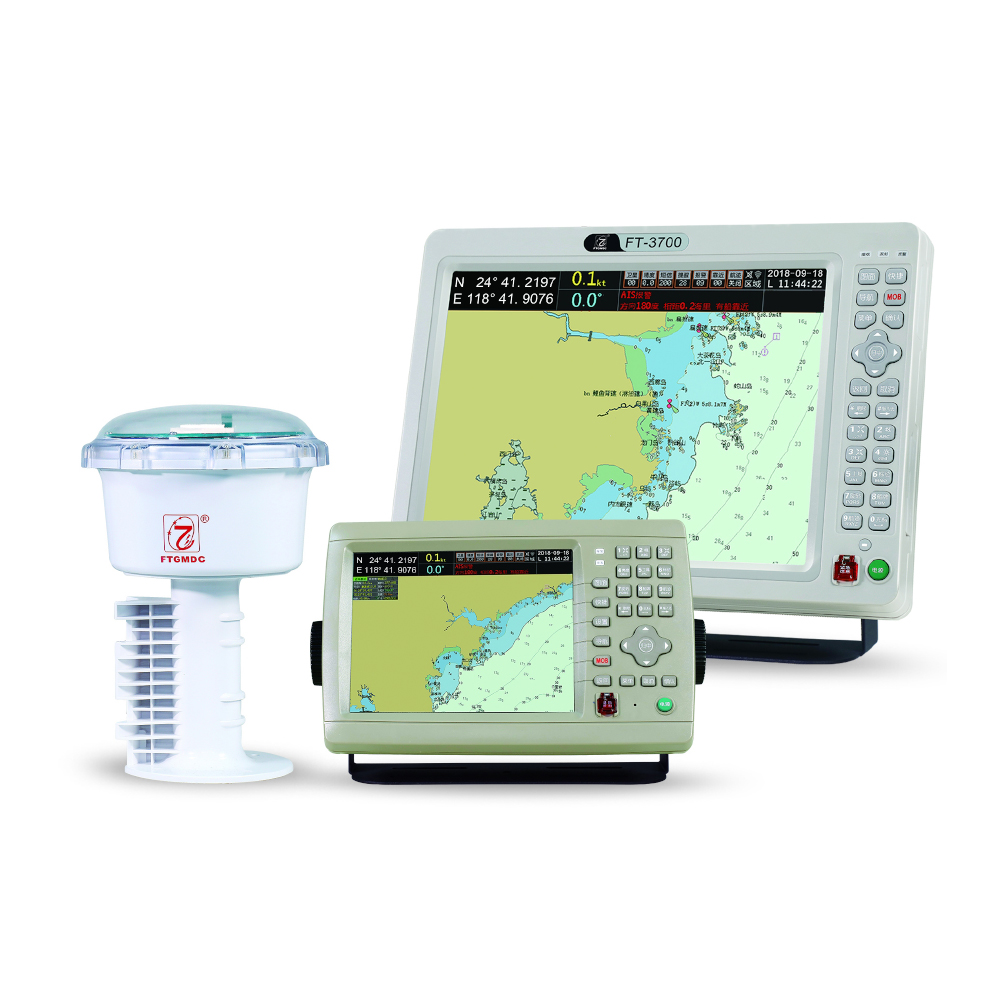

FT-3700 SHIPBORNE BEIDOU SATELLITE NAVIGATION SYSTEM RECEIVER

Color large-screen electronic chart navigation, supporting various navigation and navigation functions.Position resolution is betterthan 0.001 minutes of latitude and longitude.Static and dynamic positioning accuracy reaches10 m(95%).Can pr
INQUIRY

Color large-screen electronic chart navigation, supporting various navigation and navigation functions.
Position resolution is better than 0.001 minutes of latitude and longitude.
Static and dynamic positioning accuracy reaches 10 m (95%).
Can process DBDS data according to ITU-R and RTCM standards , can receive and process BDS positioning, speed measurement and
timing signals, and correct ionospheric delay Beidou short message communication function.
Distress warning, dismantling and moving warning, tilt warning.
Automatic monitoring report of working status.
Solar energy + built-in battery + ship power three power supply methods, independent and uninterrupted work.
Provide multi-channel data exchange and expansion interface, support GPS , heading and other information input

Frequency error	≤5×10-7	Capture	Cold start ≤ 5 min , warm start ≤ 1 min , recapture ≤ 1 min
Positioning accuracy	≤10m	Location update rate	≤1Hz
Communication Interface	RS422/38400bps	Receive error rate	≤1×10-5
Waterproof level	IP45（In-cabin unit）， IP67（3700External unit）	Number of receiving channels	≥6
Operating Voltage	DC9~38V	First capture time	≤2s
Operating temperature	-20℃ ~+55℃	Recapture time	≤1s
Receiving sensitivity	≤-127.6dBm	Transmit EIRP value	≤19dBw
Capture sensitivity	≤-130dBm	Transmission signal carrier phase modulation deviation	≤3°
Tracking sensitivity	≤-133dBm	Frequency accuracy of transmitted signal	≤5×10-7
Number of receiving channels	≥6	Two-way device delay	（1000000.0±50.0）ns
