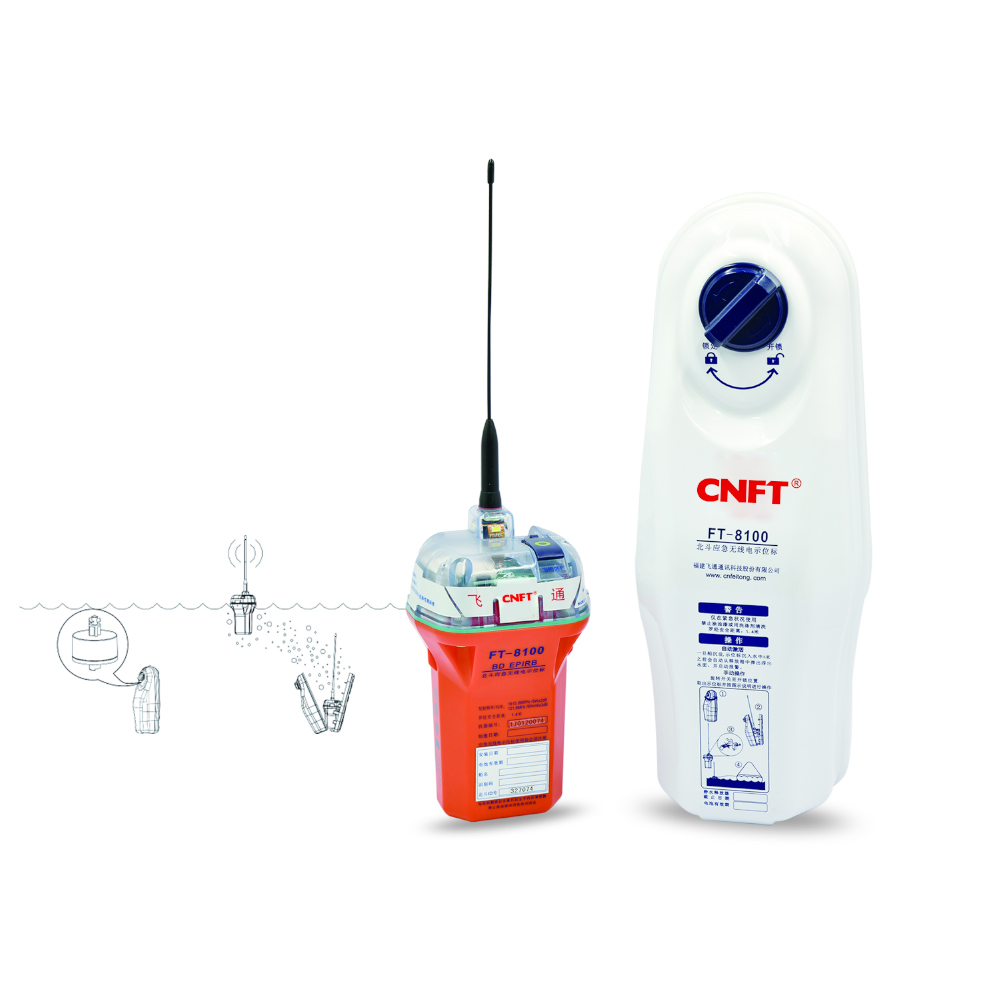

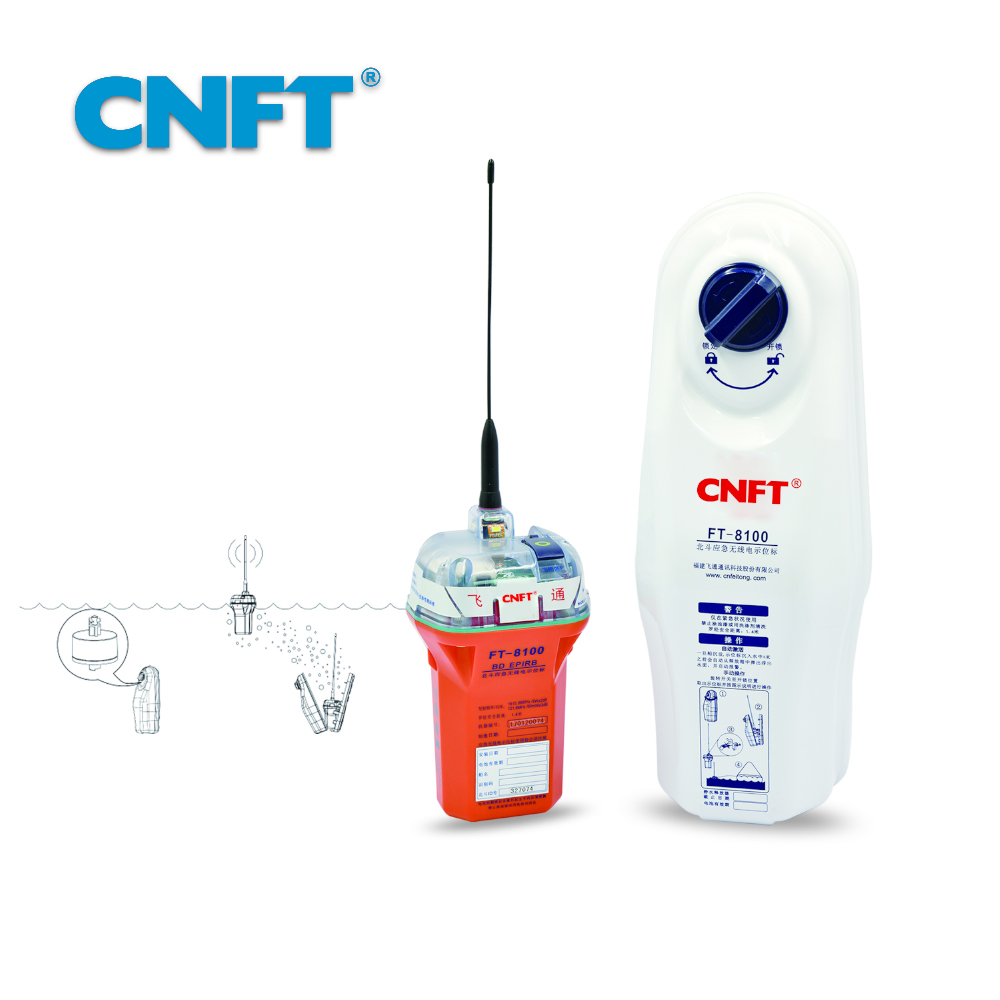

FT-8100 BEIDOU EMERGENCY RADIO POSITION BEACON (BD-EPIRB)

China's autonomousBeidou satellitenavigation system ship emergency positionbeacon.Quick and effectiveBeidou globaldistressalarm.Underwater 2-4M automaticreleasealarm.The distress signal canbema
INQUIRY

China's autonomous Beidou satellite navigation system ship emergency position beacon.
Quick and effective Beidou global distress alarm.
Underwater 2-4M automatic release alarm.
The distress signal can be manually transmitted through simple operation.
Multiple anti-false alarm protection system.
Built-in GNSS receiver, which can improve the accuracy of alarm position.
Five-year battery life, can be connected for more than 48 hours.

RDSS frequency	2491.75MHz（Rx） 1615.68MHz（Tx）	Strobe light	20次/min ，brightness>0.75cd 2 years ≤5×10-7 4dBW～19dBW（Elevation20°~90°Azimuth0°~360°) ≤3° ≥30dB （1000000±10）ns
GNSS frequency	L1:1575.42MHz ，B1:1561.098MHz	Validity period of releaser
121.5MHz beacon carrier frequency	121.5MHz±50ppm	Frequency accuracy of transmitted signal
Positioning accuracy	BDS horizontal≤25m，BDS vertical≤30m，GPS horizontal ≤13m	Transmit EIRP value
Operating temperature	-20℃~+55℃	Transmission signal carrier phase modulation deviation
Stored temperature	-30℃~+70℃	Transmit carrier suppression
Battery runtime	>48h	Two-way zero
Waterproof level	IP67
